| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | YUHONG |
| प्रमाणन: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| मॉडल संख्या: | ASTM A106 GR.B CU-T2 फिन के साथ |
| न्यूनतम आदेश मात्रा: | 1PC |
|---|---|
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | स्टील फ्रेम के साथ प्लाई-वुड केस ((पाइपों के दोनों छोरों में प्लास्टिक के ढक्कन हैं) |
| प्रसव के समय: | 15-20Work दिन |
| भुगतान शर्तें: | एल/सी, टी/टी |
| आपूर्ति की क्षमता: | ग्राहकों की आवश्यकताओं के अनुसार |
| प्रोडक्ट का नाम: | एंबेडेड जी टाइप फिन ट्यूब | नंगे ट्यूब विनिर्देश और सामग्री: | ASTM A106 GR.B |
|---|---|---|---|

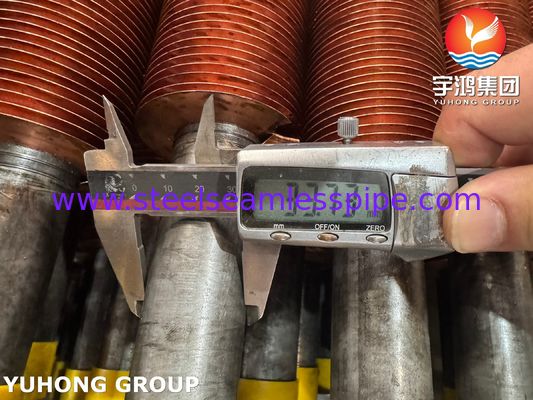

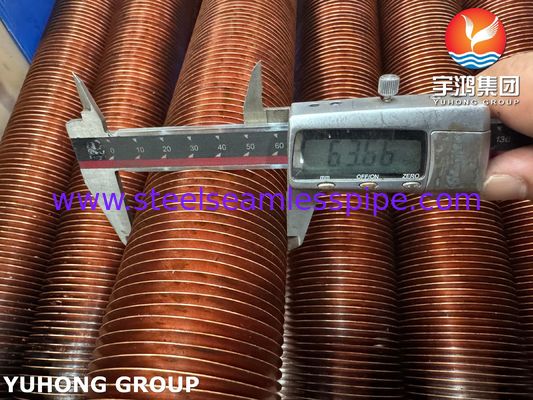

| फिन सामग्री: | सीयू-टी2 | बेयर ट्यूब ओडी: | 16-63 मिमी |
| फिन ऊंचाई: | ＜ 17 मिमी | फिन मोटाई: | ~ 0.4 मिमी |
| फिन पिच: | 2.1-5मिमी | आवेदन: | अपतटीय/ हीटर/ पेट्रोकेमिकल/ हीट एक्सचेंजर |
| परीक्षण: | एचटी/ईटी | ||
| प्रमुखता देना: | ASTM A106 GR.B fin tube,copper T2 embedded fin tube,offshore platform fin tube |
||

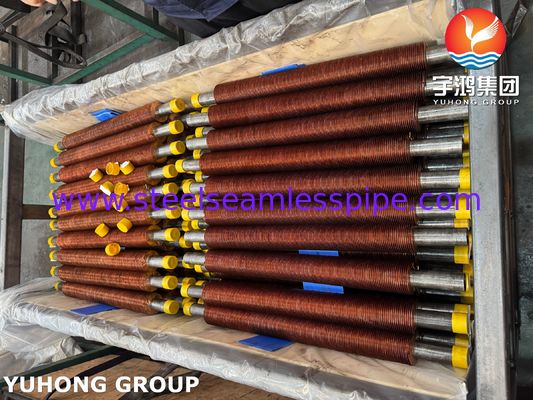

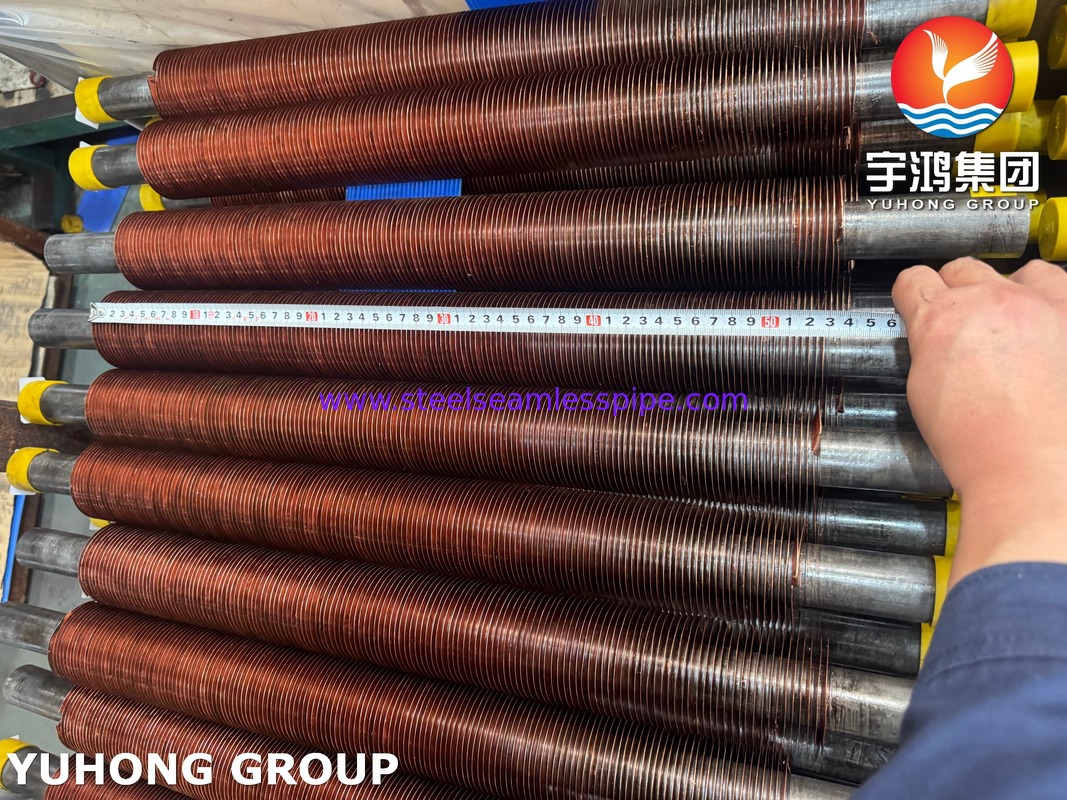

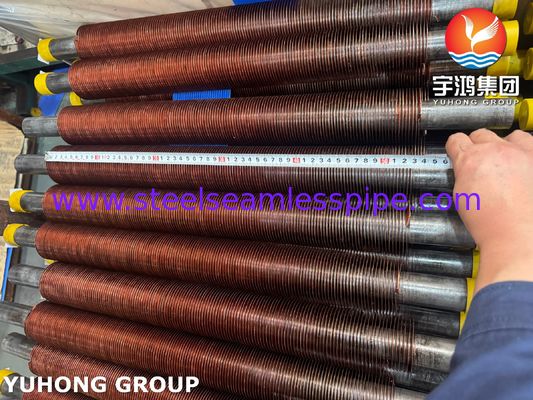

ASTM A106 GR.B With Cu-T2 Fin Embedded G Type Fin Tube, Offshore & Platform
This product is a high-performance, high-reliability composite finned tube engineered specifically for demanding offshore environments. It features a core structure of ASTM A106 GR.B high-strength seamless carbon steel as the base pipe, offering superior pressure-bearing capacity and ensuring structural integrity under high-temperature and high-pressure conditions. The Cu-T2 copper fins are permanently bonded to the base pipe via an advanced embedded manufacturing process.
This unique "Steel-Copper Composite" design delivers exceptional synergistic benefits:
The Steel Base Pipe provides the mechanical strength and ruggedness required to withstand wave-induced stresses, system pressures, and high temperatures.
The Copper Fins leverage their top-tier thermal conductivity to maximize heat transfer efficiency. Furthermore, they utilize the inherent superior corrosion resistance of copper to effectively combat the high-salinity, high-humidity marine atmosphere.
Consequently, this product is the ideal choice for various heat exchangers (such as crude oil heaters, seawater coolers, inert gas system coolers, etc.) on offshore oil & gas platforms, FPSOs, and other marine facilities. It is designed for long-term safe operation, maximized energy efficiency, and minimized lifecycle maintenance costs.
1.Chemical & Mechanical Properties
| ASTM A106 Gr.B Chemical Composition (%) |
|||||||||
| C | Mn | P | S | Si | Cr | Cu | Mo | Ni | V |
| ≤0.30% | 0.29% ~ 1.06% | ≤0.035% |
≤0.035% |
≥0.10% | ≤ 0.40% | ≤ 0.40% | ≤ 0.15% | ≤ 0.40% | ≤ 0.08% |
| Cu-T2 Fin | T2 Copper is a grade of high-purity copper. Its key characteristic is that the combined content of Copper and Silver is not less than 99.90%, meaning the total of other impurity elements must be strictly controlled below 0.1%. It is renowned for its excellent electrical and thermal conductivity. |
Mechanical Properties
| Component | Mechanical Performance | Key Features |
|
ASTM A106 Gr.B |
|
|
| Cu-T2 Fin | ||
| Tensile Strength | Annealed (O) | ≥ 195 MPa |
| Hard (H) | 295 - 380 MPa | |
| Yield Strength | Annealed (O) | ≤ 65 MPa |
| Hard (H) | 250 - 350 MPa | |
| Elongation | Annealed (O) | ≥ 40% |
| Hard (H) | 10% - 20% | |
| Hardness | Annealed (O) | HBW ≤ 40 |
| Hard (H) | HBW 70 - 110 | |
| Shear Strength | Annealed (O) | ~ 150 MPa |
| Hard (H) | ~ 250 MPa | |
2. Key Features
3. Key Applications
