| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | Yuhong |
| प्रमाणन: | ABS, BV, ISO, ASTM, SGS |
| मॉडल संख्या: | एएसटीएम बी111 सी70600 |
| न्यूनतम आदेश मात्रा: | 100kgs |
|---|---|
| मूल्य: | बातचीत योग्य |

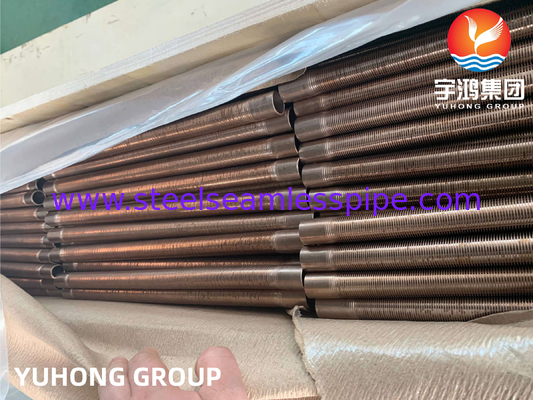

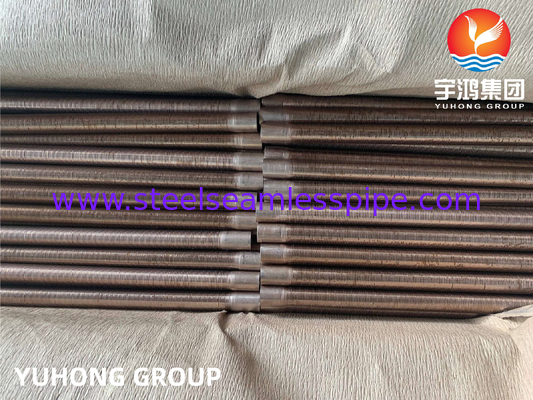

| पैकेजिंग विवरण: | प्लाई-वुडन केस / आयरन केस / प्लास्टिक कैप के साथ बंडल |
| प्रसव के समय: | 7-45 दिन |
| भुगतान शर्तें: | एल/सी, टी/टी |
| आपूर्ति की क्षमता: | 1000 टन/महीना |
| उत्पाद: | लो फिन ट्यूब | विनिर्देश: | एएसएमई एसबी111 |
|---|---|---|---|
| सतह का उपचार: | स्वनिर्धारित | सामग्री ग्रेड: | C70600 |
| ट्यूब की दीवार की मोटाई: | स्वनिर्धारित | लंबाई: | ग्राहक की आवश्यकता के अनुसार |
| प्रमुखता देना: | ASTM B111 C70600 copper nickel fin tube,low fin tube for heat exchanger,copper nickel steel fin tube |
||

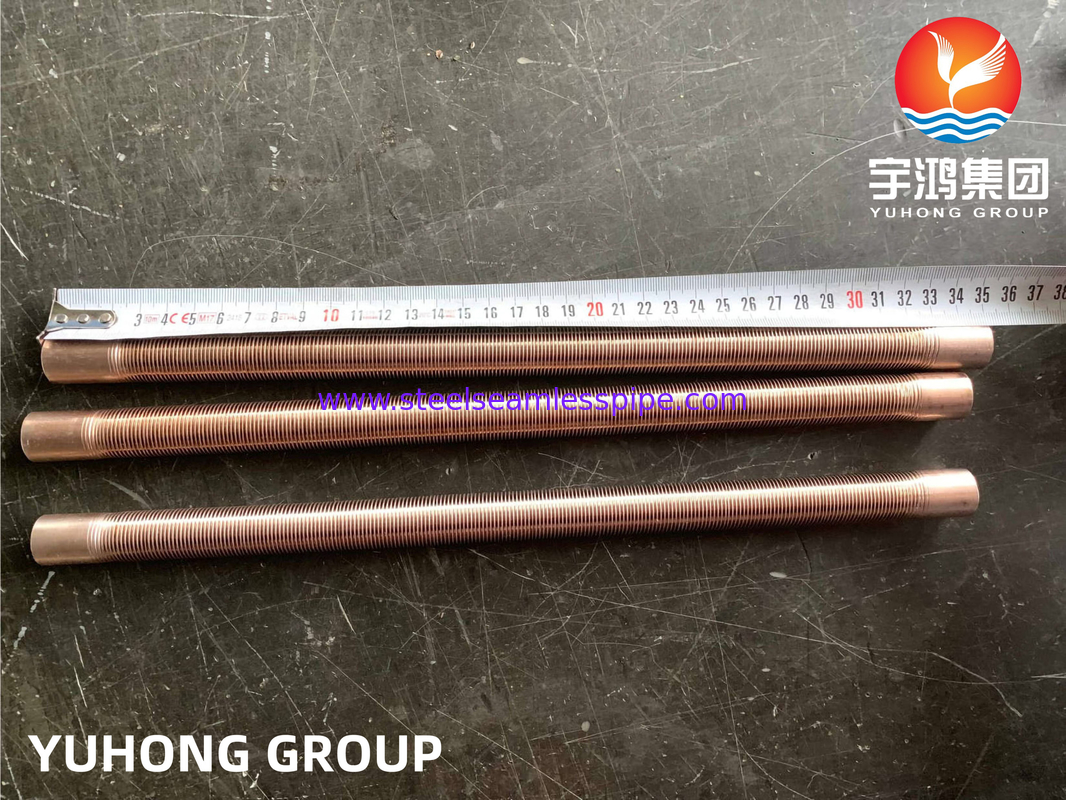

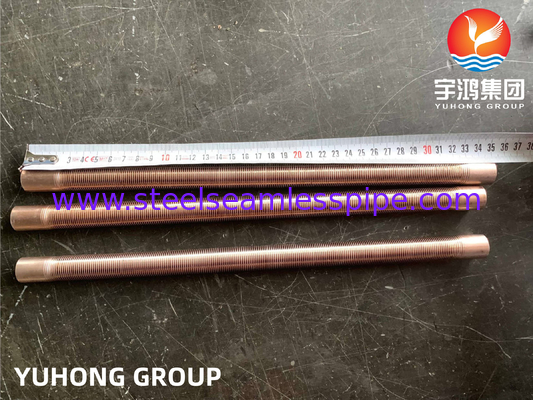

ASTM B111 C70600 Copper Nickel Steel Low Fin Tube For Hear Exchanger
The ASTM B111 C70600 Low Fin Tube is manufactured from 90/10 copper–nickel alloy (Cu ~88.7–90.0%, Ni ~9.0–11.0%). Low fins are integrally rolled from the tube’s outer surface, enhancing external surface area while keeping the inner surface smooth for fluid flow. This makes it ideal for marine, offshore, and industrial heat exchangers where seawater or brackish water is the cooling medium.
Seawater-cooled heat exchangers in power plants
Desalination equipment
Shipboard condensers & coolers
Petrochemical processing heat exchangers
Offshore oil & gas cooling systems
HVAC condensers in corrosive coastal environments
Excellent seawater corrosion resistance due to 90/10 Cu-Ni alloy
High resistance to biofouling compared to stainless steels
Improved heat transfer efficiency with low fins (increased outer surface area)
Good mechanical strength & fatigue resistance
Long service life in marine and industrial cooling applications
Smooth inner bore ensures minimal pressure drop for fluids
| Element | Content (%) |
|---|---|
| Cu (Copper) | 88.7 – 90.0 |
| Ni (Nickel + Cobalt) | 9.0 – 11.0 |
| Fe (Iron) | 1.0 – 1.8 |
| Mn (Manganese) | 1.0 max |
| Zn (Zinc) | 1.0 max |
| Pb (Lead) | 0.02 max |
| Others | 0.1 max |
Mechanical Properties (Annealed Condition, per ASTM B111)
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 275 |
| Yield Strength (0.5% ext, MPa) | ≥ 105 |
| Elongation (%) | ≥ 30 |
| Hardness (HRB) | ≤ 80 |

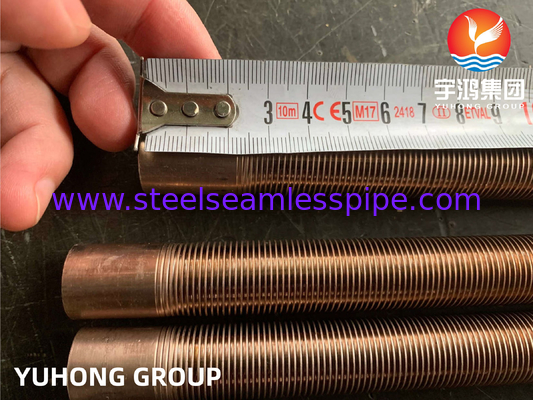

Fin Type: Low fin, integrally rolled from base tube
Fin Height: Typically 0.3 – 0.5 mm
Fin Density: 19 – 26 FPI (Fins per inch), depending on design
Bond: Metallurgically integral (no risk of loosening)
Tube OD Range: 9.52 mm – 25.4 mm
Tube Length: Up to 18 meters (customizable)
