Forged Fitting, ASTM B564 NO8811 (Incoloy 800HT) Ni-Fe-Cr Alloy Concentric Reducer ANSI B16.5

• YUHONG brand goods have been already exported to more than 85 countries With more than 35 years' experience, because of strict quality control policy, excellent sales service, delivery on time. YUHONG won more and more new clients and got more and more repeat orders from old clients, in YUHONG People's mind: Quality is First Important!

Forged Fitting, ASTM B564 NO8811 (Incoloy 800HT) Ni-Fe-Cr Alloy Concentric Reducer ANSI B16.5

ASTM B564 is a standard specification for Nickel Alloy Forgings. The nickel-iron-chromium alloys are UNS NO8120, UNS NO8800, UNS NO8810, and UNS NO8811. Alloy UNS NO8800 is normally employed in service temperatures up to and including 1100 °F (593 °C). Alloys UNS NO8810, NO8120, and UNS N08811 are normally employed in service temperatures above 1100 °F (593 °C) where resistance to creep and rupture is required, and are annealed to develop controlled grain size for optimum properties in this temperature range.

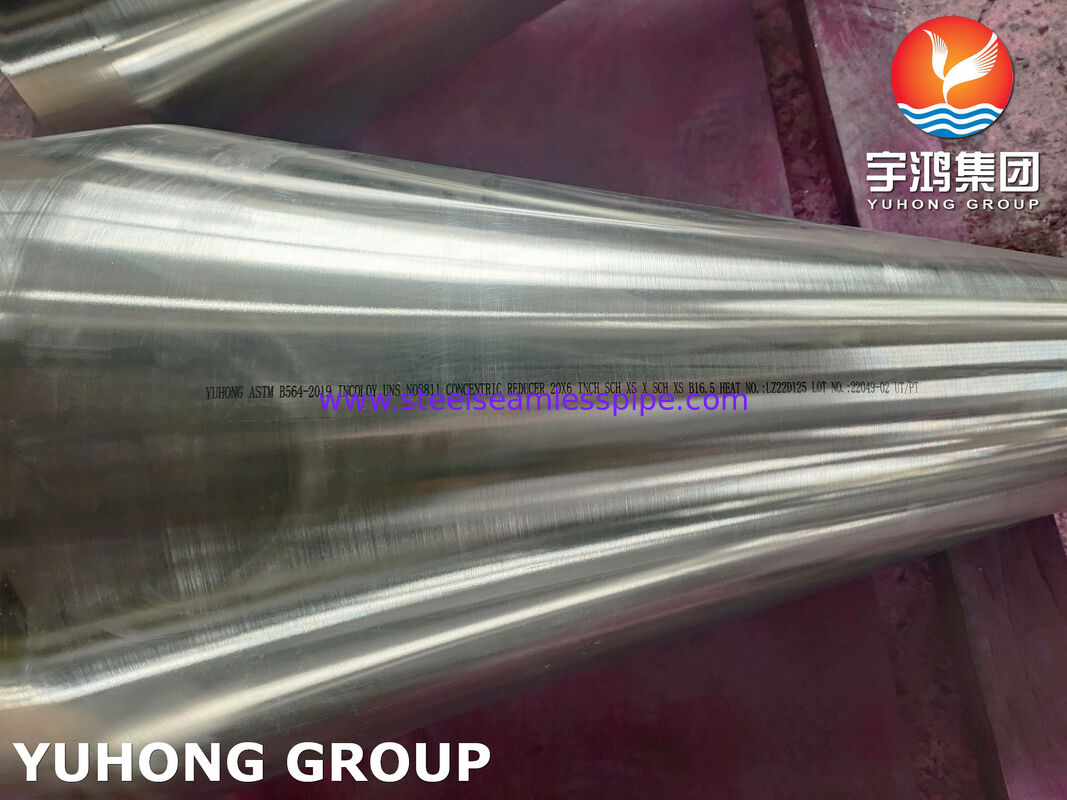

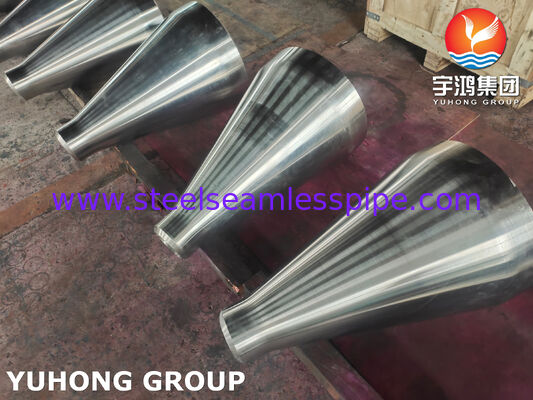

A forged concentric reducer manufactured from nickel-iron-chromium alloy UNS N08811 (Incoloy 800HT) in accordance with ASTM B564 specification. It's also a modified version of alloy 800. With significantly higher creep rupture strength. The higher strength results from close control of carbon, aluminum and titanium contents in conjunction with a high temp anneal.

This product is intended for use in high-temperature service applications requiring excellent creep rupture strength, oxidation resistance, and carburization resistance, typically in petrochemical, chemical processing, and power generation industries.

1.Chemical & Mechanical Properties

Mechanical Properties

2. Key Adventages

• The 800HT modification was to control carbon (0.05 to 0.10%) and grain size to (>ASTM 5) to optimize stress rupture properties. Incoloy 800 HT has further modifications to the combined titanium and aluminum levels (0.85 to 1.2%) to ensure optimum high temperature properties. The alloy is dual certified and combines the properties of both forms.
•

• The chemical balance allows the alloy to exhibit excellent resistance to carburization, oxidation and nitriding atmospheres. 800HT will not become embrittled even after long periods of usage in the 1200-1600 deg F range where many stainless steels become brittle.
•

• Excellent cold forming characteristics typically associated with the nickel-chromium alloys are exhibited with 800HT. When cold formed extensively the grain size produces a visibly undulated surface called “orange peel”. 800HT can be welded by the common techniques used on stainless steels.

3. Key Applications

• Petrochemical Industry

• Power Generation

• Industrial Furnaces & Heat Treating Equipment

• Chemical Processing

• Nuclear Industry

• Aerospace & Marine Engineering

• Other High-Temperature Applications

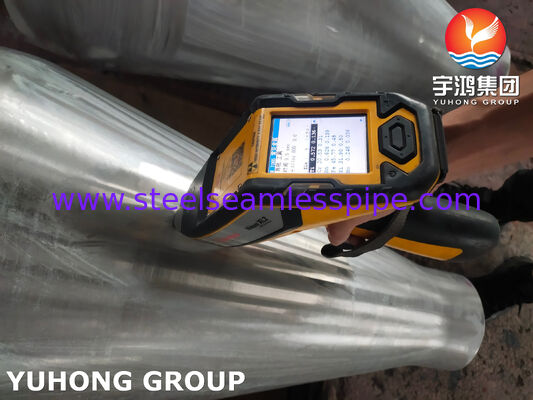

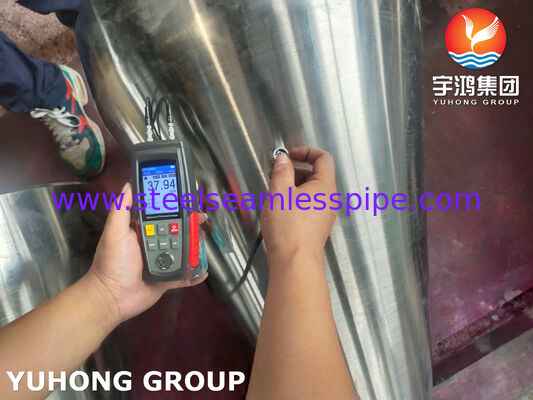

Available Tests
