| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | YUHONG |
| प्रमाणन: | ASME, ABS, DNV-GL , BV, LR , KR, CCS, PED, TUV, ISO9001, AD2000 |
| मॉडल संख्या: | एईएस प्रकार |
| न्यूनतम आदेश मात्रा: | 1 सेट |
|---|---|
| मूल्य: | 1--1000000 USD |
| पैकेजिंग विवरण: | आवश्यकताएँ/ प्लाई-वुडन केस/ आयरन केस/ प्लास्टिक कैप के साथ बंडल |
| प्रसव के समय: | 45---150 दिन |
| भुगतान शर्तें: | टी/टी, एल/सी दृष्टि में |
| आपूर्ति की क्षमता: | 60 सेट/महीना |
| मानक: | TEMA "R" ED.99 TIPO: AES | प्रवाह व्यवस्था: | एकल पास |
|---|---|---|---|
| शंख: | A516 | ट्यूबों: | SA214 |
| परीक्षण: | हाइड्रोजन प्रेरित क्रैकिंग "डी" | ||
| प्रमुखता देना: | ASME certified vacuum condenser,second-stage condenser for lubricant oil,solvent refining heat exchanger |
||

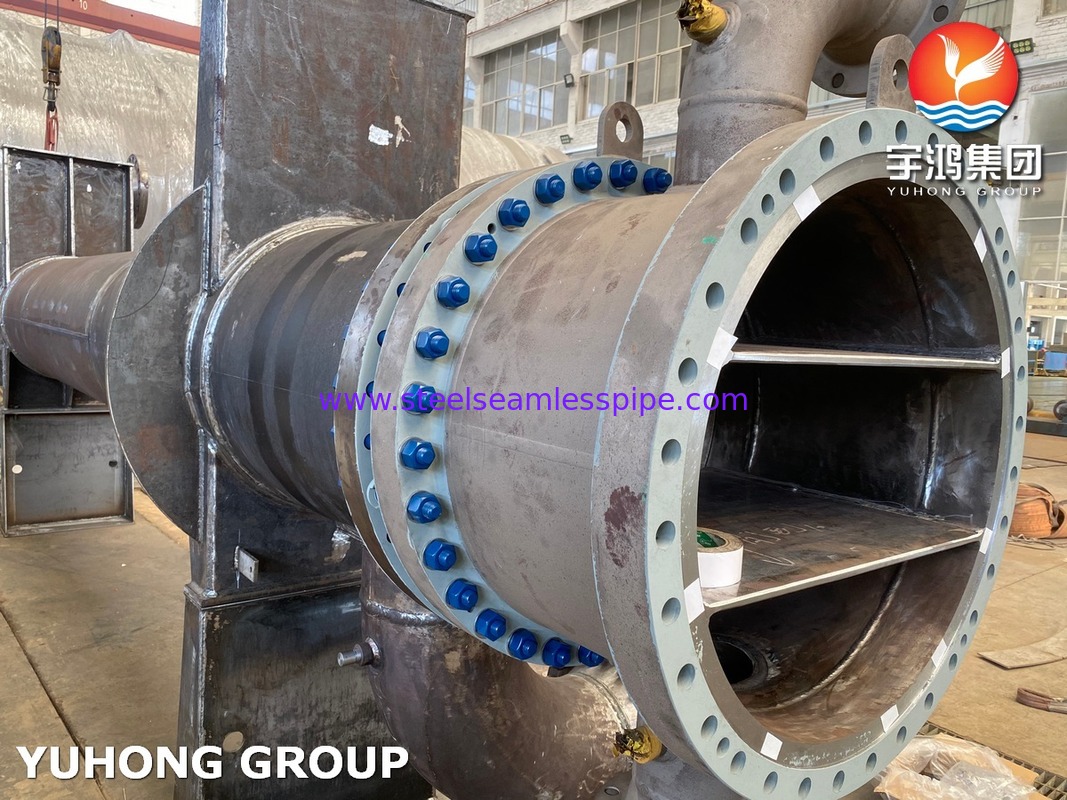

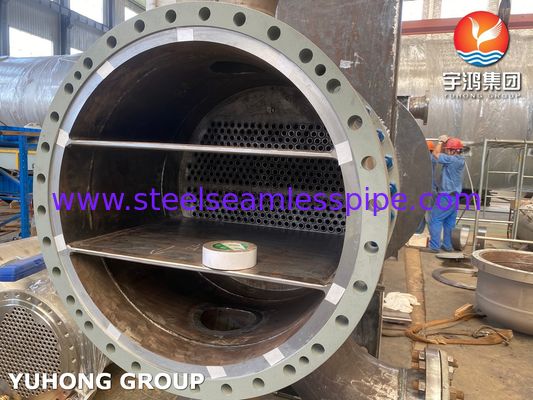

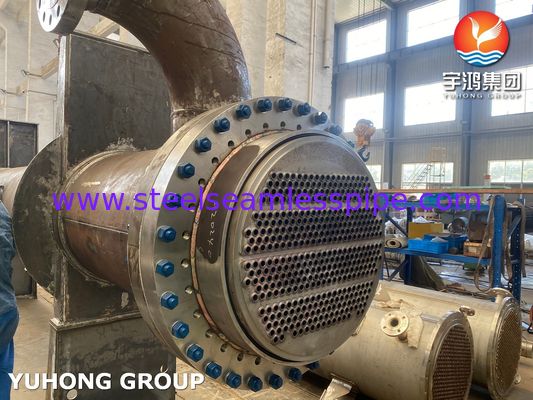

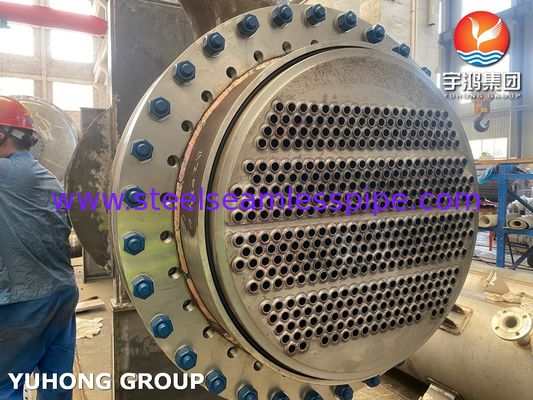

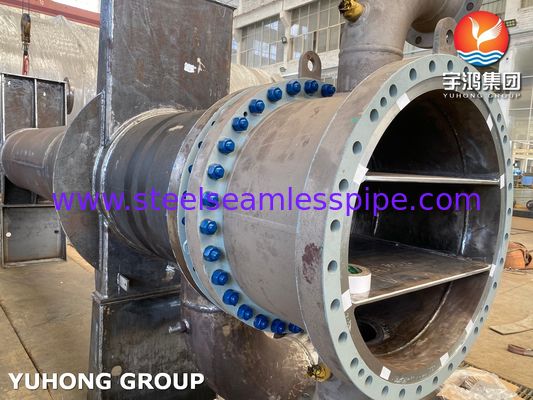

ASME Certificated Second-Stage Vacuum Condenser for Lubricant Oil Solvent Refining Unit
YUHONG is a national high-tech enterprise specializing in the design, manufacture, and service of high-end pressure vessels and heat exchange equipment. With over two decades of industry experience, we hold numerous international and domestic certifications, including the ASME "U" stamp and China's Class A1/A2 Pressure Vessel Manufacturing License. Adhering to the business philosophy of "quality first, technology at the core, and customer-centric," we are committed to providing safe, efficient, and reliable process equipment solutions for the global petrochemical, fine chemical, power energy, and environmental protection industries. We are honored to provide high-performance heat exchangers for your project.
Second-Stage Vacuum Condenser Heat Exchanger Materials List
| POS. | Description |
| 1 | FIXED TUBESHEET |
| 2 | FLOATING TUBESHEET |
| 3 | TUBES TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=3048 |
| 4 | BAFFLE SA-36 PLATE 12.5mm (1/2"), 592X806.2MM |
| 5 | BAFFLE SA-36 PLATE 12.5mm (1/2"), 592X806.2MM |
| 6 | SUPPORT PLATE SA-36 PLATE 16mm (5/8"), 806.2MM |
| 7 | TIE RODS SA-36 BAR Ø1/2", L=2883MM |
| 8 | HEX NUT SA-194-2M Ø1/2" "UNC" THREAD |
| 9 | SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=502MM |
| 10 | SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=1507.5MM |
| 11 | SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=1262MM |
| 12 | SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), 747.5MM |
| 13 | SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), 1537.5MM |
| 14 | SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=777.5MM |
| 15 | GASKET PLATE SA-36 PLATE 6.3mm (1/4"), 58x1573MM |
| 16 | SLIDING PLATE SA-36 PLATE 12.5mm (1/2"), 74x2850MM |
| 17 | PROTECTION PLATE SA-36 PLATE 6.3mm (1/4"), 460x515MM |
| 18 | PROTECTION PLATE SA-36 PLATE 6.3mm (1/4"), 460x515MM |
| 19 | SQUARE PLATE SA-36 Ø6.3mm (1/4"), L=515MM |
| 20 | HEADLESS SLOTTED PLUG AISI-304 Ø3/4" "UNC" THREAD, L=30MM |
| 21 | EYE BOLT DIN 580 "UNC" THREAD, 3/4INCHx30MM |
| 22 | IDENTIFICATION PLATE AISI-304 PLATE 1.5mm, 35x75MM |
| 23 | STOPPER SA-36 PLATE 19mm (3/4"), 37x40MM |
HIC Testing and the "HIC D" Grade, Second-Stage Vacuum Condenser
•Crack Length Ratio (CLR) ≤ 5%
•Crack Thickness Ratio (CTR) ≤ 1.5%
•Crack Sensitivity Ratio (CSR) ≤ 0.5%
In some extremely severe service conditions, the specification may require all three indices to be 0%, meaning no detectable cracking is permitted.
