| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | YUHONG |
| प्रमाणन: | ISO, SGS, BV, ISO&SGS, ISO/CE/SGS |
| मॉडल संख्या: | ASME SB338 UNS R50400 |
| न्यूनतम आदेश मात्रा: | 1PC |
|---|---|
| मूल्य: | बातचीत योग्य |

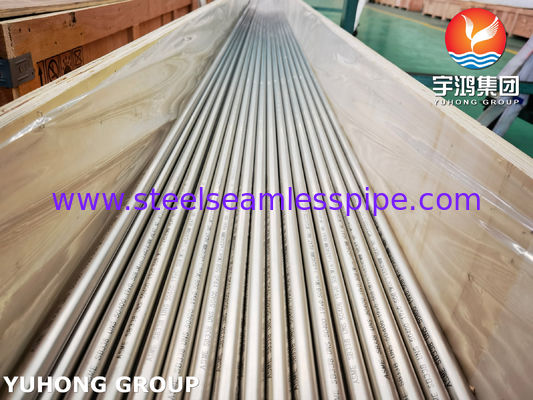

| पैकेजिंग विवरण: | प्लास्टिक कैप के साथ प्लाई-वुडन केस / आयरन केस / बंडल |
| प्रसव के समय: | 5-80 दिन |
| भुगतान शर्तें: | एल/सी, टी/टी |
| आपूर्ति की क्षमता: | 1500tons/महीना |
| प्रमाणन: | ISO, SGS, BV, ISO&SGS, ISO/CE/SGS | मानक: | एएसटीएम, एआईएसआई, जीबी, डीआईएन, जेआईएस |
|---|---|---|---|
| इस्पात श्रेणी: | Gr.2 UNS R50400 | प्रकार: | निर्बाध, वेल्डेड, गोल पाइप / ट्यूब |
| बहरी घेरा: | अनुकूलित | मोटाई: | अनुकूलित |
| लंबाई: | 3000-6000 मिमी, अनुकूलित | तकनीक: | कोल्ड रोल्ड हॉट रोल्ड, कोल्ड ड्रॉन, एक्सट्रूज़न, कोल्ड ड्रॉन/कोल्ड रोलिंग या दोनों |
| प्रमुखता देना: | ASME SB338 titanium seamless tube,Grade 2 titanium tube,UNS R50400 pure titanium tube |
||

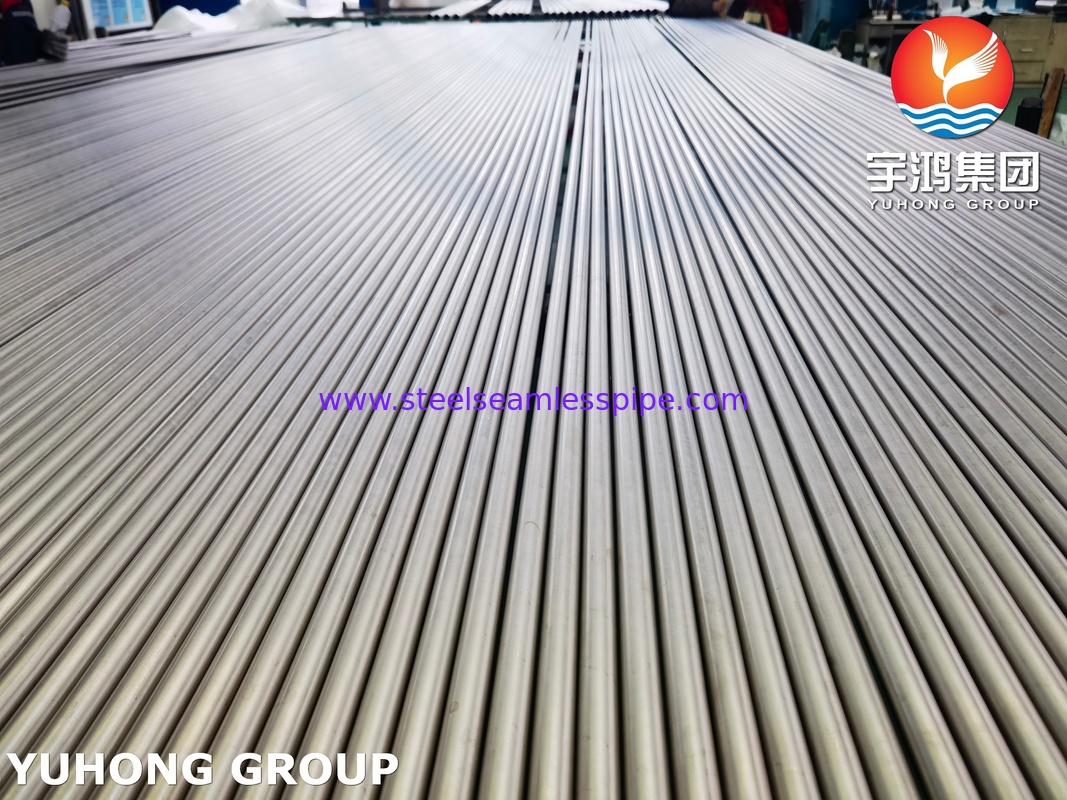

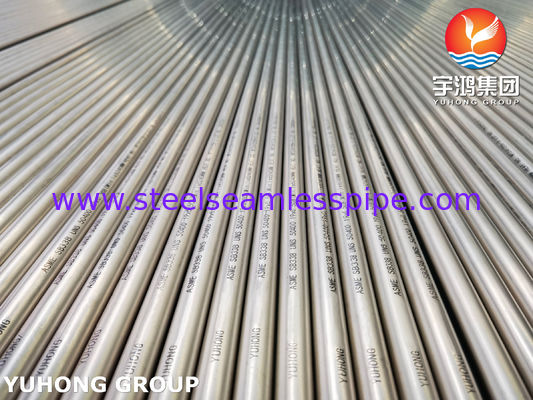

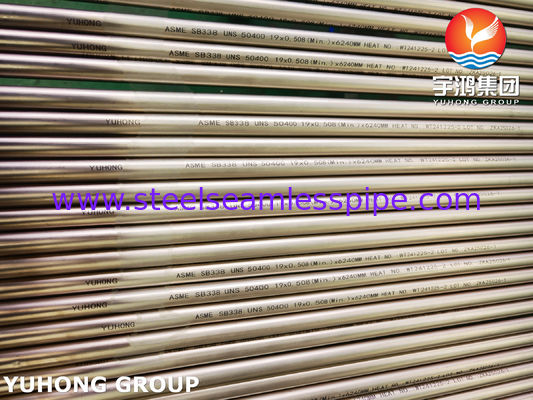

ASME SB338 Grade2 Ti2 UNS R50400 Pure Titanium Seamless Tube
Description
ASME SB338 is the specific standard titled "Standard Specification for Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers." While originally for heat exchangers, tubes made to this standard are used in many other critical applications.
Grade 2 is unalloyed titanium, known for its excellent corrosion resistance, good ductility, and moderate strength.
UNS R50400 as the Unified Numbering System code that uniquely identifies this specific material composition, corresponds directly to ASTM Grade 2 titanium.
| Element | Chemical Composition % | ||||||||
| Grade 1 | Grade 2 | Grade 3 | Grade 5 | Grade 7 | Grade 9 | Grade 11 | Grade 12 | Grade 23 | |
| Nitrogen, max | 0.03 | 0.03 | 0.05 | 0.05 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
| Carbon, max | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 |
| Hydrogen, max | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.0125 |
| Iron, max | 0.20 | 0.30 | 0.30 | 0.40 | 0.30 | 0.25 | 0.20 | 0.30 | 0.25 |
| Oxygen, max | 0.18 | 0.25 | 0.35 | 0.20 | 0.25 | 0.15 | 0.18 | 0.25 | 0.13 |
| Aluminum | … | … | … | 5.5-6.75 | … | 2.5-3.5 | … | … | 5.5-6.5 |
| Vanadium | … | … | … | 3.5-4.5 | … | 2.0-3.0 | … | … | 3.5-4.5 |
| Tin | … | … | … | … | … | … | … | … | … |
| Ruthenium | … | … | … | … | … | … | … | … | … |
| Palladium | … | … | … | … | 0.12-0.25 | … | 0.12-0.25 | … | … |
| Molybdenum | … | … | … | … | … | … | … | 0.2-0.4 | … |
| Chromium | … | … | … | … | … | … | … | … | … |
| Nickel | … | … | … | … | … | … | … | 0.6-0.9 | … |
| Niobium | … | … | … | … | … | … | … | … | … |
| Ziconium | … | … | … | … | … | … | … | … | … |
| Silicon | … | … | … | … | … | … | … | … | … |
| Residuals, max each | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Residuals, max total | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Titanium | balance | balance | balance | balance | balance | balance | balance | balance | balance |
| Grade | Tensile Strength, min | Yield Strength (0.2% Offset) | Elongation 2 in. or 50 mm | |||||
| min | max | |||||||
| Ksi | (Mpa) | Ksi | (Mpa) | Ksi | (Mpa) | gage length min % | ||
| Grade 1 | 35 | (240) | 25 | (170) | 45 | (310) | 24 | |
| Grade 2 | 50 | (345) | 40 | (275) | 65 | (450) | 20 | |
| Grade 3 | 65 | (450) | 55 | (380) | 80 | (550) | 18 | |
| Grade 5 | 130 | (895) | 120 | (828) | … | … | 10 | |
| Grade 7 | 50 | (345) | 40 | (275) | 65 | (450) | 20 | |
| Grade 9 | 90 | (620) | 70 | (483) | 45 | … | 15 | |
| Grade 11 | 35 | (240) | 25 | (170) | … | (310) | 24 | |
| Grade 12 | 70 | (483) | 50 | (345) | … | … | 18 | |
| Grade 23 | 120 | (828) | 110 | (759) | … | … | 10 | |
Applications
Heat Exchangers & Condensers: The primary application in the standard's title. Used in chemical processing, power generation (especially offshore platforms), and desalination plants.
Chemical & Petrochemical Processing: For piping systems, reactors, and vessels handling corrosive chemicals.
Marine & Offshore: For seawater piping, ballast systems, and other components exposed to saltwater.
Aerospace: For hydraulic and pneumatic systems, and airframe components where weight savings are critical.
Medical & Pharmaceutical: For implants, surgical instruments, and processing equipment due to its biocompatibility.
