| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | Yuhong |
| प्रमाणन: | DNV, BV, PED, LR, ABS, TS, CCS |
| मॉडल संख्या: | एएसटीएम A179 |
| न्यूनतम आदेश मात्रा: | 1 सेट |
|---|---|
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | लोहे का मामला |
| प्रसव के समय: | 45-150 दिन |
| आपूर्ति की क्षमता: | 1000 टन/महीना |
| संक्षारण प्रतिरोध: | उच्च | पैकेट: | प्लाईवुड कार्टन |
|---|---|---|---|
| प्रयोग: | उष्मा का आदान प्रदान करने वाला | कलमों: | 30 मिमी मोटाई तक |
| टक्कर प्लेट: | SA516-60N | ट्यूबों: | SA214 |
| डिज़ाइन शैली: | स्वनिर्धारित | दबाव सीमा: | 0.1-3 एमपीए |
| प्रमुखता देना: | nitrogen filled shell tube heat exchanger,anti-corrosion heat exchanger with safety labels,heat exchanger for hot surface asphyxiation |
||

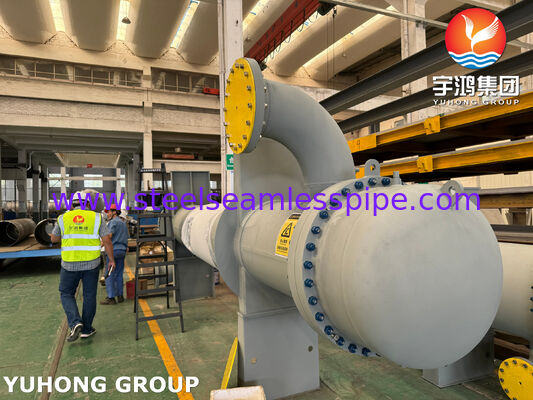

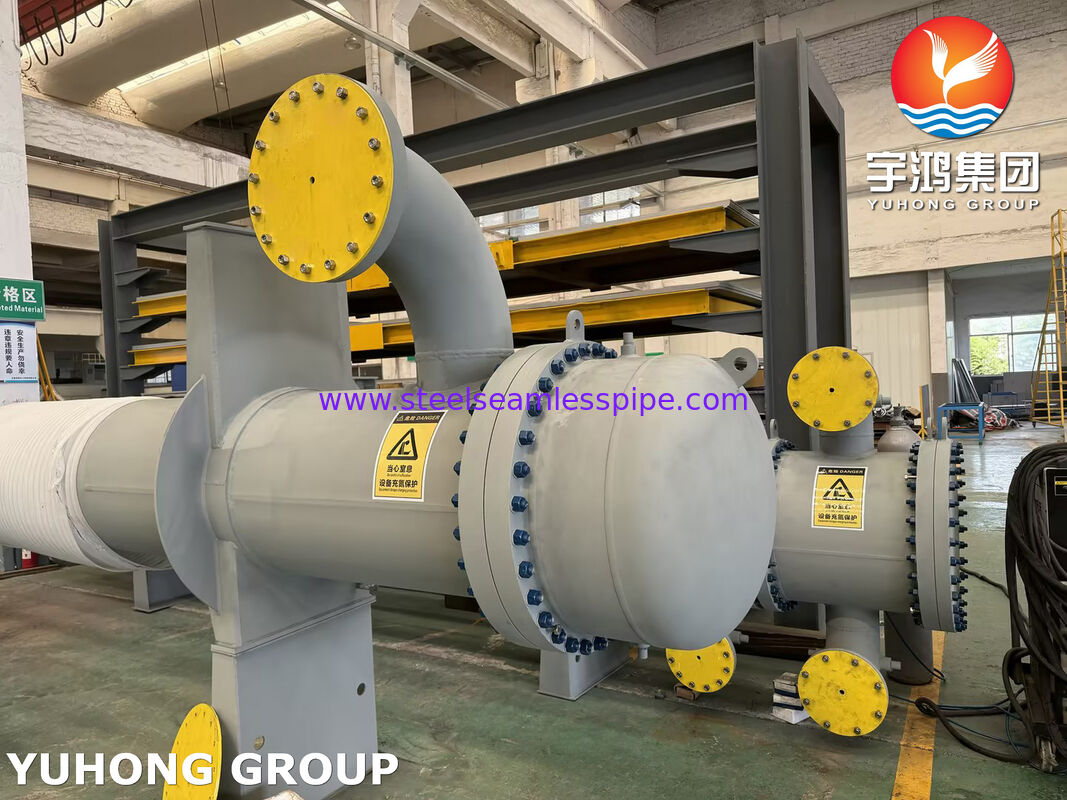

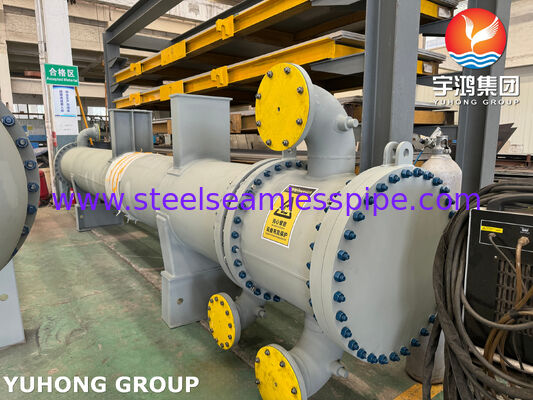

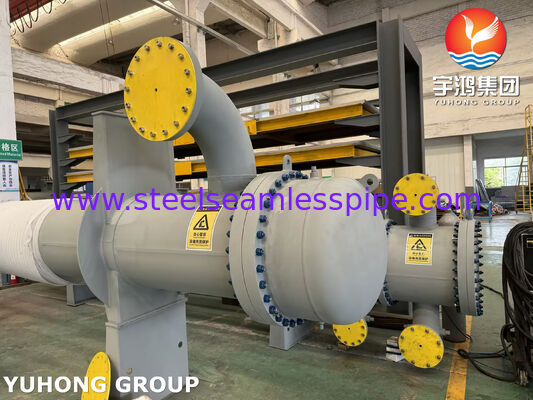

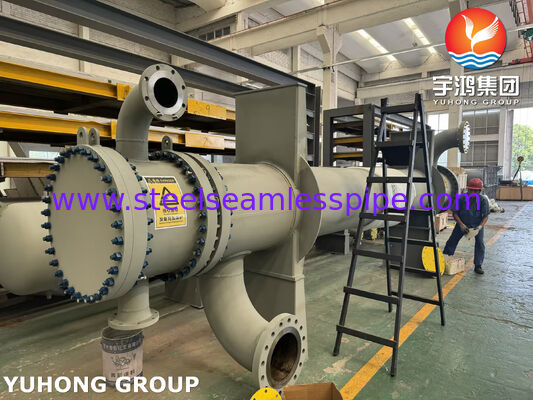

Shell & Tube Heat Exchanger – Nitrogen Filled, Anti-Corrosion, with Safety Labels for Hot Surface & Asphyxiation
This heat exchanger is manufactured by YUHONG GROUP, suitable for heat transfer between two fluids (e.g., steam/water, oil/cooling water). The unit shown in pictures features a robust shell & tube design, with flanged connections and a durable painted finish. Each unit passes factory quality inspection and carries a “Qualified” label.
Key Advantages
Nitrogen Protection – The internal cavity is purged and filled with nitrogen before shipment, preventing rust and oxidation during storage or long sea freight.
Safety Warnings – “Caution: Hot Surface”, “Equipment Protection Required”, and “Danger: Asphyxiation Risk” labels are affixed to remind operators of high temperatures and oxygen deficiency when opening the unit.
Traceable Quality – Branded with YUHONG GROUP logo and serial number.
Technical Features (typical range, confirm with drawing)
Type: Fixed tubesheet or floating head (available)
Tube material: SS304, SS316L, carbon steel, or copper
Shell material: Carbon steel (Q235B/Q345R) or stainless steel
Design pressure: 0.6 – 4.0 MPa
Design temperature: -20°C to +300°C
Gasket: Non-asbestos / spiral wound
Flange standard: HG/T20592 or ANSI B16.5
Applications
Chemical reactors, power plant cooling, HVAC district heating, food processing (sanitary SS), marine engine cooling.
Shipping & Documentation for Courier (e.g., to Korea)
Packed in fumigation-free wooden case or heavy-duty carton with foam padding.
Nitrogen filling port sealed.
Documents (commercial invoice, packing list, FTA certificate of origin / CO) placed in a waterproof pouch attached to the outside of the carton.
Scanned copies emailed in advance for customs clearance.
Maintenance
Before first use: vent nitrogen, purge with dry air.
During operation: monitor ΔT and pressure drop.
Long-term storage: recharge nitrogen and keep in dry warehouse.
Why YUHONG GROUP
ISO9001 certified, pressure vessel manufacturing capability.
OEM sizes, materials, and standards available.
On-time delivery via courier or LCL.
Full documentation support for smooth customs clearance
