| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | YUHONG |
| प्रमाणन: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| मॉडल संख्या: | ASTM A213 T11 |
| न्यूनतम आदेश मात्रा: | 500 किग्रा |
|---|---|
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | प्लाई-लकड़ी का केस/आयरन केस/प्लास्टिक कैप के साथ बंडल |
| प्रसव के समय: | मात्रा पर निर्भर करता है |
| भुगतान शर्तें: | एल/सी,टी/टी |
| आपूर्ति की क्षमता: | ग्राहकों की आवश्यकताओं के अनुसार |
| प्रोडक्ट का नाम: | मिश्र धातु सीमलेस ट्यूब | विनिर्देश: | एएसटीएम ए213/ एएसएमई एसए213 |
|---|---|---|---|
| सामग्री: | टी5 (यूएनएस के11597) | डब्ल्यूटी: | MW/ AW |
| प्रकार: | निर्बाध | समाप्त होता है: | सादा अंत, बेवेल्ड अंत |
| एनडीटी: | ईटी, यूटी, एचटी, आरटी | आवेदन: | बॉयलर, सुपरहीटर, हीट एक्सचेंजर |
| प्रमुखता देना: | ASTM A213 T11 alloy steel tube,Cr-Mo alloy seamless boiler tube,high-temperature high-pressure heat exchanger tube |
||

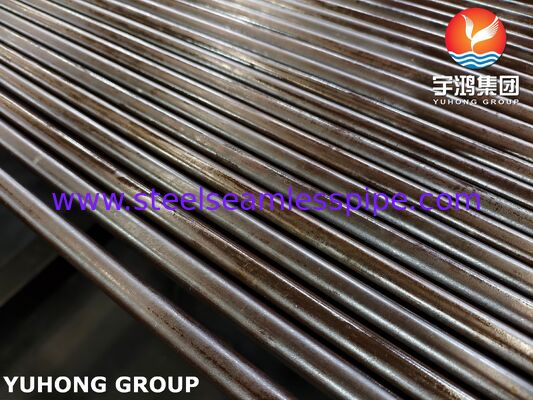

ASTM A213 T11 Cr-Mo Alloy Seamless Tube for 580°C+ High-Temperature & High-Pressure Boiler and Heat Exchanger
ASTM A213 T11 is a chromium-molybdenum (Cr-Mo) low-alloy ferritic seamless steel tube, with the nominal composition of 1.25Cr-0.5Mo-Si. It is in minimum wall thickness or, if specified in the order, average wall thickness. T11 alloy steel offers good weldability, requiring preheating to 300°C prior to welding and post-weld stress relief treatment. The product is widely utilized in high-pressure, ultra-high-pressure, and subcritical power station boiler superheaters, reheaters, headers, and main steam pipelines, as well as nuclear power heat exchangers and petrochemical cracking unit furnace tubes.
| ASTM / ASME | UNS | JIS | EN | GB | DIN |
| T11 | K11597 | STBA23 | 10CrMo5-5 | 12Cr1MoV | 1.7338 |
Chemical & Mechanical Properties
| ASTM A213 T5 Chemical Composition (%) | ||||||
| C | Mn | P | S | Si | Cr | Mo |
|
0.05-0.15 |
0.30-0.60 | ≤0.025 |
≤0.025 |
0.50-1.00 |
1.0-1.50 |
0.44~0.65 |
Mechanical Properties
| Tensile Strength |
Yield Strength (0.2% offset) |
Elongation |
Hardness |
|
|
Brinell/Vickers
|
Rockwell
|
|||
| ≥415 MPa (60 ksi) | ≥205 MPa (30 ksi) | ≥30% | ≤163 HBW / 170 HV | 85 HRB |
*Heat treatment
The ASTM A213 T11 seamless tubes shall be made by the hot-rolling or cold-drawn seamless process. The tubes may be furnished in two heat treated conditions: full or isothermal annealed; or normalized and tempered (N+T). Especially, if N+T is adopted, the tempering temperature shall be no less than 650°C [1200°F].
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |
*Permissible variations from the specified minimum wall thickness shall be in accordance with Specification A1016/A1016M.
Key Adventages
Key Applications
