| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | YUHONG |
| प्रमाणन: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| मॉडल संख्या: | टीपी405, टीपी409, टीपी410, टीपी430, टीपी439, टीपी444, टीपी446, टीपी441 |
| न्यूनतम आदेश मात्रा: | 100 किलोग्राम |
|---|---|
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | प्लाईवुड मामले |
| प्रसव के समय: | 30-60 दिन |
| भुगतान शर्तें: | टी/टी, एल/सी |
| आपूर्ति की क्षमता: | स्वनिर्धारित |
| मानक: | एएसटीएम ए268, एएसएमई एसए268 | सामग्री ग्रेड: | टीपी405, टीपी409, टीपी410, टीपी430, टीपी439, टीपी444, टीपी446, टीपी441 |
|---|---|---|---|
| बहरी घेरा: | 6.35-152.4 मिमी या अनुरोध के अनुसार | दीवार की मोटाई: | 0.5-25 मिमी या अनुरोध के अनुसार |
| लंबाई: | 6 मीटर या अनुकूलित | सतही समापन: | ब्राइट एनील्ड, पिकल्ड और एनील्ड, मैकेनिकल पॉलिश |
| भुगतान की शर्तें: | सादा अंत, बेवेल्ड अंत | अनुप्रयोग: | पेट्रोकेमिकल उद्योग, बिजली उत्पादन, तेल और गैस संयंत्र, हीट एक्सचेंजर्स, कंडेनसर, आदि। |

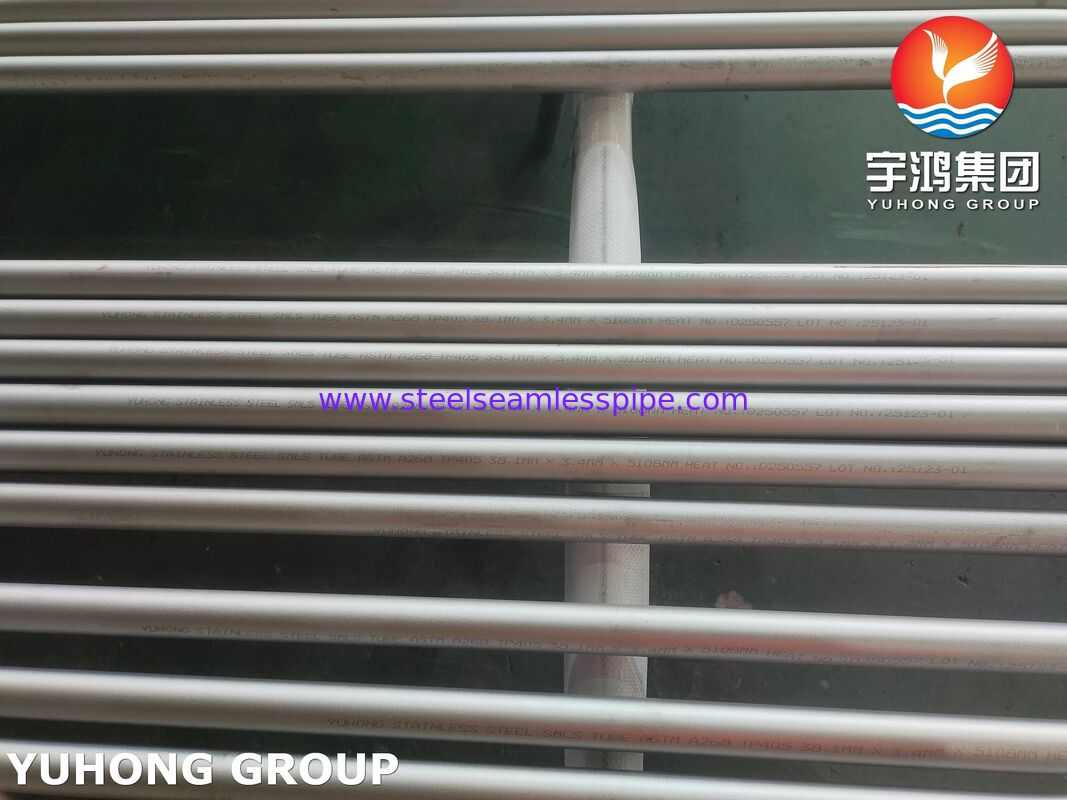

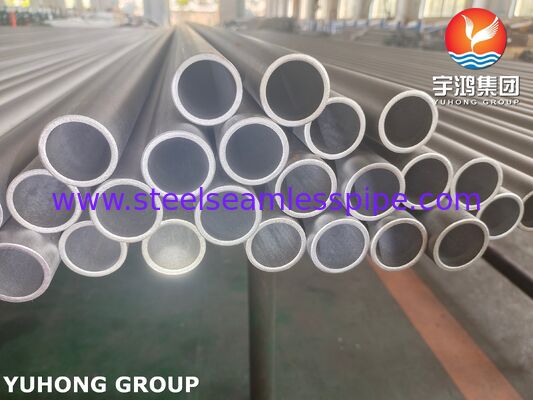

ASTM A268 TP405 Stainless Steel Seamless Tubes For Petrochemical Industry
ASTM A268 TP405 stainless steel tube is a ferritic and martensitic stainless steel tube for general corrosion-resistant and high-temperature service. TP405 grade corresponds to UNS S40500, and is a straight-chromium ferritic stainless steel grade with controlled aluminum content, which is designed to improve weldability and reduce brittleness compared to conventional 400-series stainless steels. Different from welded tubes, TP405 stainless steel seamless tubes are produced by hot rolling and cold drawing/rolling processes with no welding seam, delivering unified metallographic structure, superior pressure resistance, and consistent mechanical performance. SS405 grade is ferromagnetic, features moderate corrosion resistance, excellent high-temperature oxidation resistance, and good formability after annealing treatment. It is widely used in medium-temperature industrial systems requiring anti-oxidation, anti-corrosion and stable structural performance.
YUHONG GROUP specializes in TP405, TP410, TP430, etc. stainelss steel tubes complied with ASTM 268/ASME SA268 specification. The OD sizes range from 6.35mm to 152.4mm. As for length per tube, we generally provide 6 meters or cut into fixed length based on clients’ request.
Chemical Composition(%):
| C | Si | Mn | P | S | Cr | Ni | Al |
| ≤0.08 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 11.50 – 14.50 | ≤0.50 | 0.10 – 0.30 |
Mechanical Properties:
| Performance Index | Standard Value |
| Tensile Strength (Rm) | ≥415MPa |
| Yield Strength (Rp0.2) | ≥205MPa |
| Elongation(A) | ≥22% |
| Max Hardness (HRB) | ≤95HRB |
Key Features of ASTM A268 TP405 Seamless Tube:
Main Applications:
Standard Delivery Condition:
- Heat Treatment State: Fully annealed (bright annealing or ordinary annealing), eliminating internal stress, optimizing toughness and weldability, no quenched or tempered state for conventional delivery.
- Surface State: Pickled and descaled, no oxide scale, no rust, no cracks or folding defects; customized polishing/brushing available.
- End Treatment: Tube ends flat cut and deburred to remove burrs, convenient for on-site welding and assembly.
- Packaging: Waterproof paper wrapping + steel strip bundling + plastic pipe cap protection; plywood box packaging for precision small-diameter tubes, suitable for long-distance sea and land transportation.
