| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | YUHONG |
| प्रमाणन: | ISO13485: 2016 |
| मॉडल संख्या: | 10जी-34जी |
| न्यूनतम आदेश मात्रा: | 50 किलोग्राम |
|---|---|
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | प्लाईवुड मामले |
| प्रसव के समय: | 30 दिन |
| भुगतान शर्तें: | टी/टी, एल/सी |
| आपूर्ति की क्षमता: | प्रति वर्ष 13 अरब टुकड़े |
| मानक: | ISO9626: 2016 | सामग्री ग्रेड: | SUS304 |
|---|---|---|---|
| बहरी घेरा: | 0.18मिमी-3.4मिमी(10जी-34जी) | दीवार की मोटाई प्रकार: | आरडब्ल्यू, टीडब्ल्यू, ईटीडब्ल्यू, यूटीडब्ल्यू |
| लंबाई प्रति ट्यूब: | 2 मीटर अधिकतम. | सतही समापन: | रा ≤ 0.8 µm |
| आवृति सीमा: | सीधा, कुंडलित | अनुप्रयोग: | मेडिकल इंजेक्शन सुई, इन्फ्यूजन सुई, पंचर सुई, सिरिंज सुई, सर्जिकल उपकरण, प्रयोगशाला उपकरण, पियर्स, स |
| प्रमुखता देना: | AISI304 stainless steel medical capillary tube,SUS304 hypodermic needle tubing,cold drawn stainless steel needle tube |
||

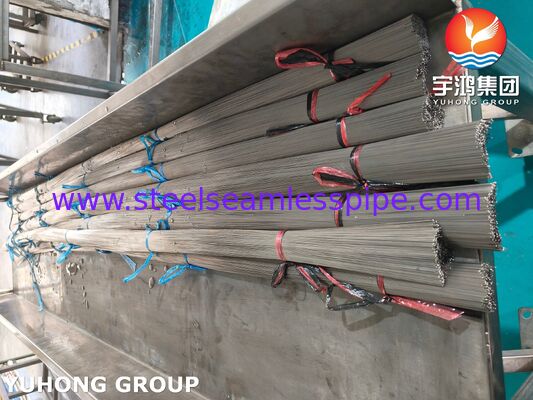

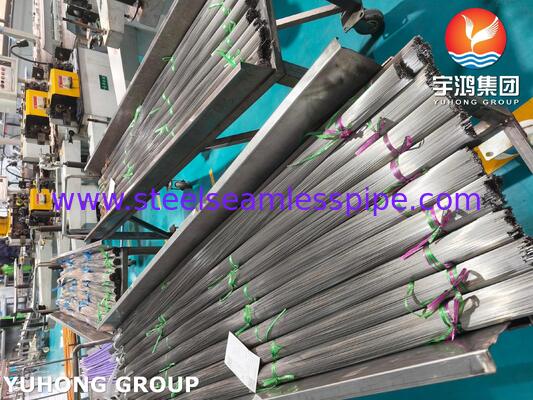

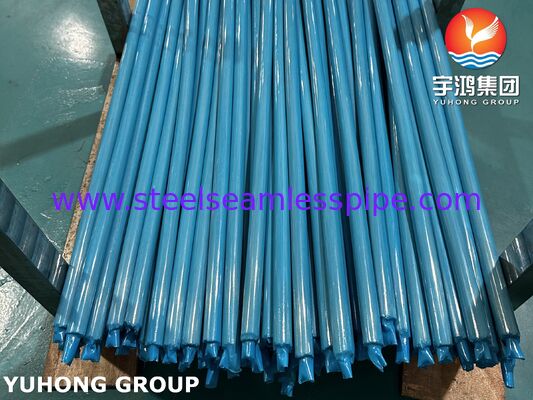

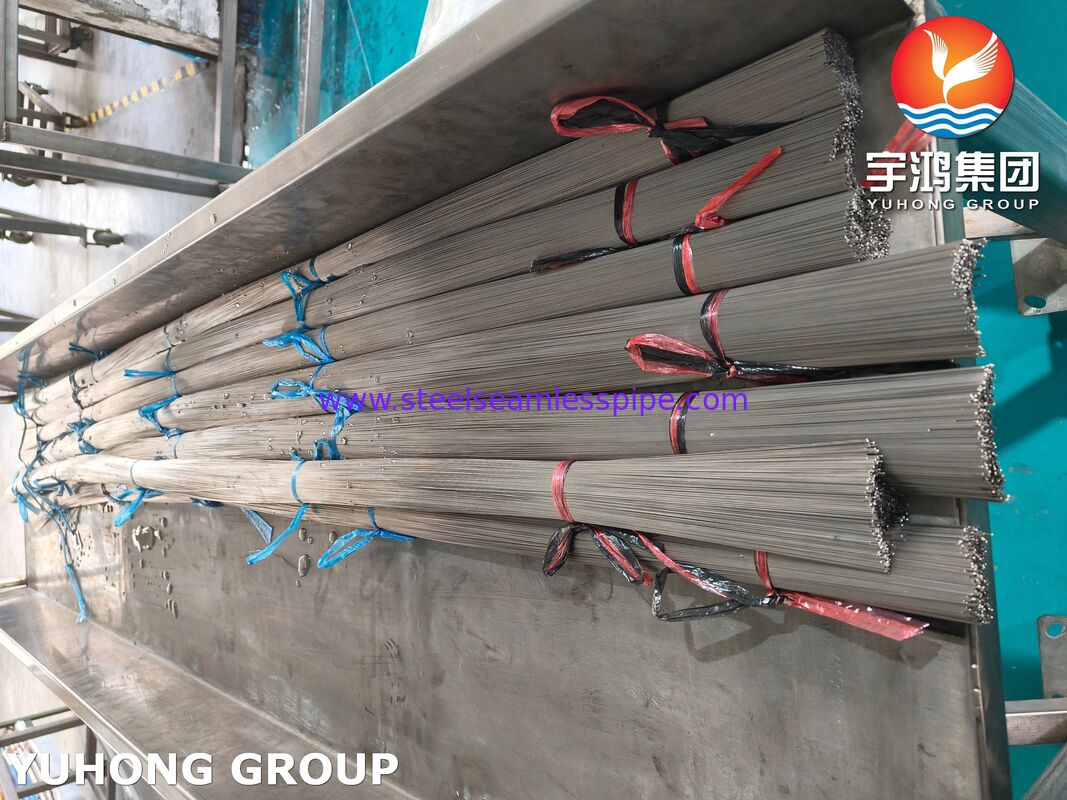

AISI304 SUS304 Cold Drawn Stainless Steel Medical Capillary Tube For Hypodermic Needle Tubing

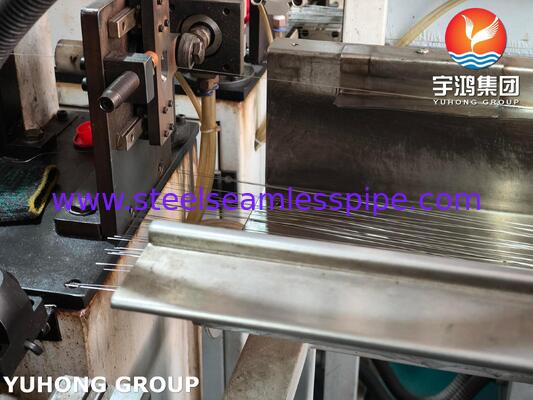

An ISO9626 SUS304 / AISI304 Cold Drawn Stainless Steel Medical Grade Capillary Tube is a precision-engineered, small-bore hollow tube that is manufactured to meet the stringent requirements of ISO 9626:2016 (the international standard for stainless steel needle tubing for medical devices). It is made from SUS304 / AISI304 austenitic stainless steel using a cold drawing process, ensuring exceptional dimensional accuracy, mechanical properties, and a flawless internal bore. "Medical grade" signifies that the tube is biocompatible, non-toxic, and suitable for direct or indirect contact with human tissue, blood, or medical fluids. YUHONG GROUP provides 10G-34G medical grade stainless steel capillary tubes in straight or coil length. These medical capillary tubes are welded by stainless steel 304 strips, and processed by cold drawn, annealed, straightened, cut, deburred and cleaned. Our medical stainless steel hypodermic tubes are all complied with ISO9626 standard with excellent surface finish and strict dimensional tolerance.
Specification:
| Standard | ISO9626:2016 |
| Material | SUS304 / AISI304 / 1.4301 |
| Type | Welded, Cold drawn, Annealed |
| OD Range | 0.18 mm – 3.4 mm (34G to 10G) |
| WT Range | RW, TW, ETW, UTW |
| Length | 0-2m (straight lengths) or custom-cut |
| Surface | Ra ≤ 0.8 µm |
Key Features Of Medical Stainless Steel Capillary Tubes:
Different Applications of SUS304 Medical Tubes:
