| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | YUHONG |
| प्रमाणन: | ISO13485: 2016 |
| मॉडल संख्या: | 10जी-34जी |
| न्यूनतम आदेश मात्रा: | 50 किलोग्राम |
|---|---|
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | प्लाईवुड मामले |
| प्रसव के समय: | 25 दिन |
| भुगतान शर्तें: | टी/टी, एल/सी |
| आपूर्ति की क्षमता: | प्रति वर्ष 13 अरब टुकड़े |
| विनिर्देश: | ISO9626: 2016 | सामग्री ग्रेड: | 304 स्टेनलेस स्टील ग्रेड |
|---|---|---|---|
| बहरी घेरा: | 0.15 मिमी -3.4 मिमी (10 जी -34 जी) या अनुकूलित के रूप में | दीवार की मोटाई: | आरडब्ल्यू, टीडब्ल्यू, ईटीडब्ल्यू, यूटीडब्ल्यू |
| लंबाई प्रति ट्यूब: | 2 मीटर अधिकतम. | सतही समापन: | पॉलिश |
| सतह का खुरदरापन: | रा≤0.8μm | अनुप्रयोग: | मेडिकल इंजेक्शन सुई, इन्फ्यूजन सुई, हाइपोडर्मिक सुई, डेंटल सुई, रक्त संग्रह सुई, सौंदर्य सुई, आदि। |
| प्रमुखता देना: | SUS304 stainless steel capillary tube,medical hypodermic tube,disposable syringe needle tube |
||

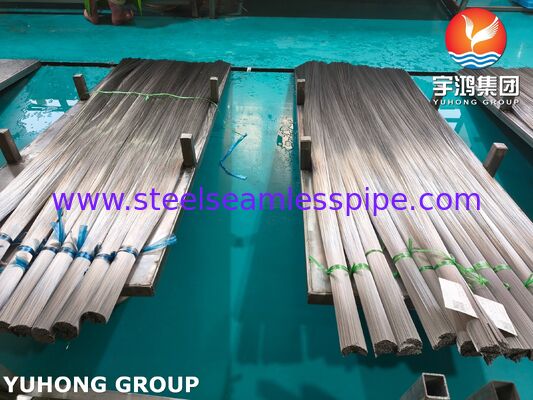

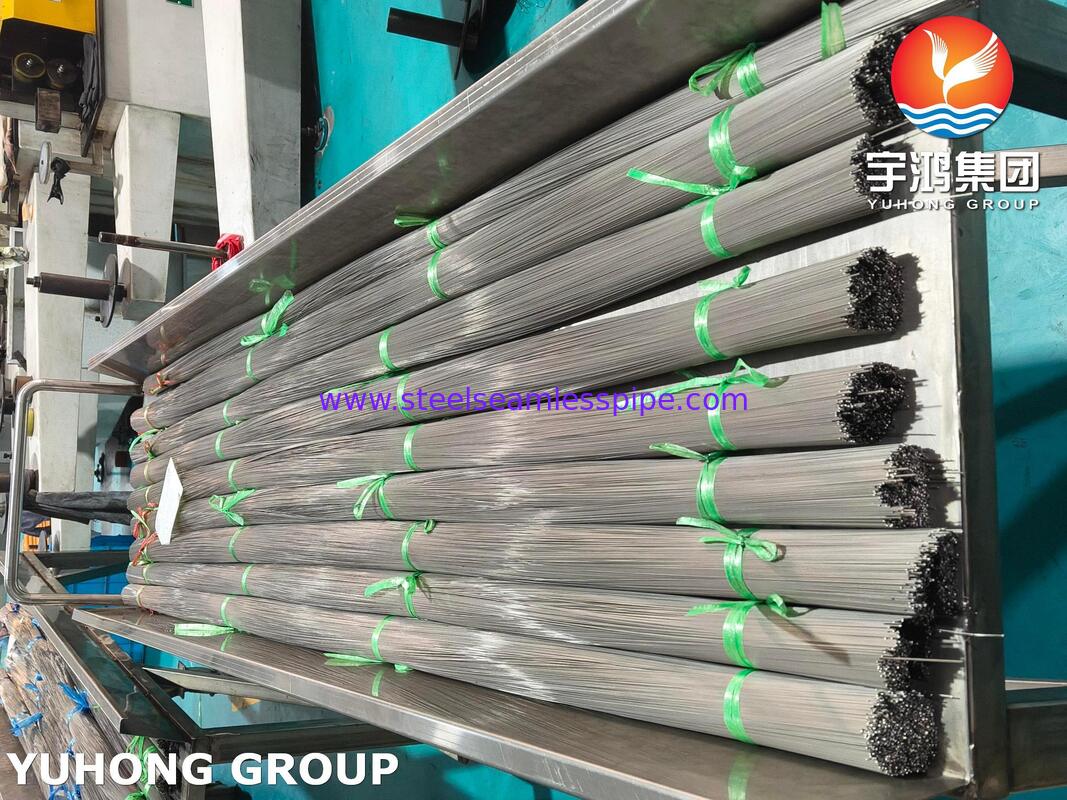

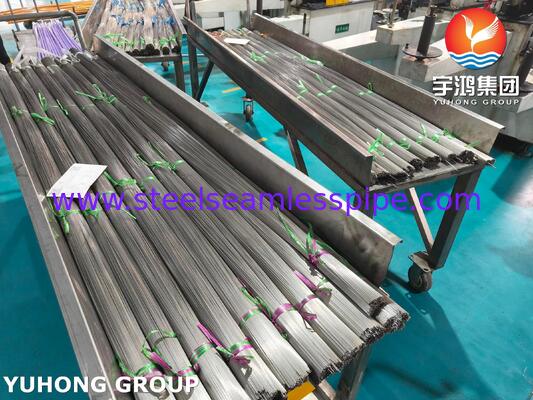

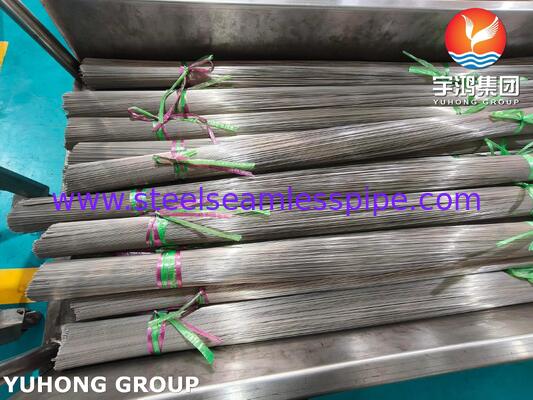

SUS304 Stainless Steel Capillary Tube , Medical Hypodermic Tube For Disposable Syringe
The ISO 9626 SUS304 stainless steel capillary tube (medical hypodermic tube) is a high-precision, small-diameter stainless steel needle tube, specifically designed for manufacturing medical devices. Made from SUS304 austenitic stainless steel (equivalent to AISI 304 / 1.4301) using precision cold-drawing processes, this thin-walled, hollow cylindrical tube is primarily used for hypodermic needles and other percutaneous medical devices. Its design, manufacture, and testing strictly comply with ISO 9626:2016 requirements.
As a leading Chinese stainless steel capillary tubes supplier, YUHONG HOLDING GROUP manufactures different sizes(10G-34G) of stainless steel capillary tubes. The length per tube is 2 meter maximum. We can cut into fixed length according to clients’ request. These medical grade stainless steel capillary tubes are mainly used to make medical needles, such as injection needle, hypodermic needle, infusion needle, blood collection needle, IV cannula, dental needle, mesotheraphy needle, and so on. If clients have requirements about finished needle tubes, we can also provide needle tubes with different kinds of needle tips, like tri-bevelled tip, blunt tip, pencil tip, quincke tip, flat bevel tip, etc..
Chemical Composition:
| Element | Composition (%) |
| Chromium (Cr) | 17.5 – 19.5 |
| Nickel (Ni) | 8.0 – 10.5 |
| Carbon (C) | ≤ 0.07 |
| Manganese (Mn) | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Nitrogen (N) | ≤ 0.10 |
| Iron (Fe) | Balance |
Key Features of Medical Grade SUS304 Capillary Tubes:
Applications of SUS304 Medical Capillary Tubes:
Secondary Processing & Services:
End forming capabilities:
