| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | YUHONG |
| प्रमाणन: | ABS, LR, GL, DNV, NK, TS, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| मॉडल संख्या: | ASTM A270 TP304 स्टेनलेस स्टील सैनिटरी ट्यूब |
| न्यूनतम आदेश मात्रा: | 500 किग्रा |
|---|---|
| पैकेजिंग विवरण: | प्लाई-लकड़ी का केस/आयरन केस/प्लास्टिक कैप के साथ बंडल |
| प्रसव के समय: | 7 दिन |
| भुगतान शर्तें: | एल/सी, टी/टी |
| प्रोडक्ट का नाम: | स्टेनलेस स्टील सेनेटरी टयूबिंग | मानक: | एएसटीएम A270 / ASME SA270 |
|---|---|---|---|
| सामग्री: | टीपी304/304एल/316/316एल | आयुध डिपो: | 12.7, 25.4, 38.1, 50.8, 63.5एमएम.... |
| डब्ल्यूटी: | 1.2, 1.5, 2एमएम.... | लंबाई: | सिंगल रैंडम, डबल रैंडम और कट लेंथ |
| सतह: | पोलिश, ब्राइट एनील्ड | प्रकार: | निर्बाध / वेल्डेड |
| भुगतान की शर्तें: | सादा सिरा, बेल्वेड सिरा, धागा सिरा | ||
| प्रमुखता देना: | ASTM A270 sanitary tubing,food grade 304 stainless steel tube,seamless dairy industry tubing |
||

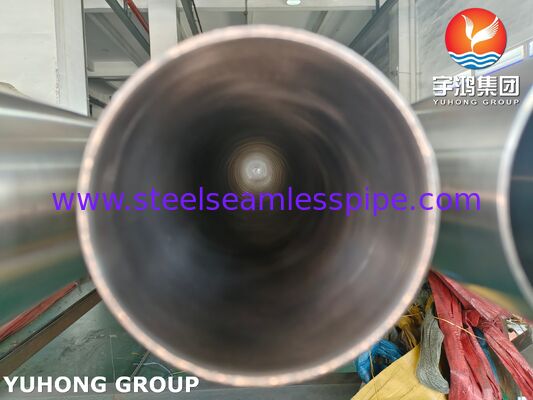

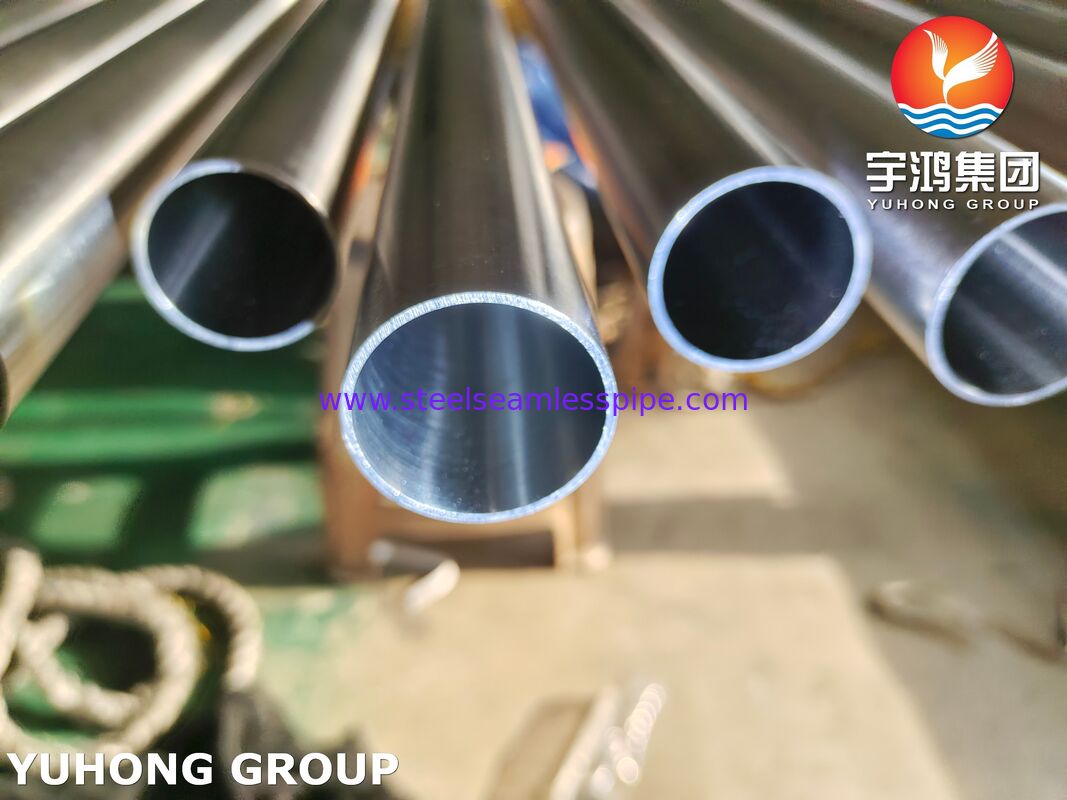

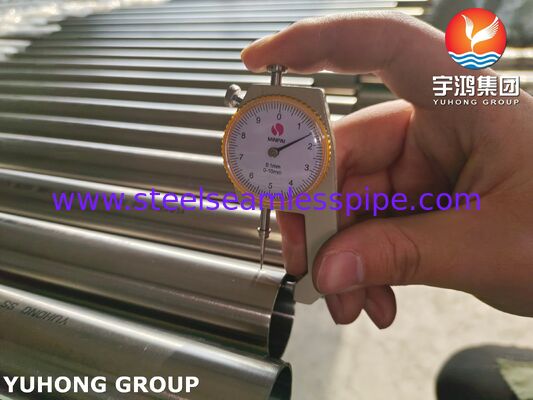

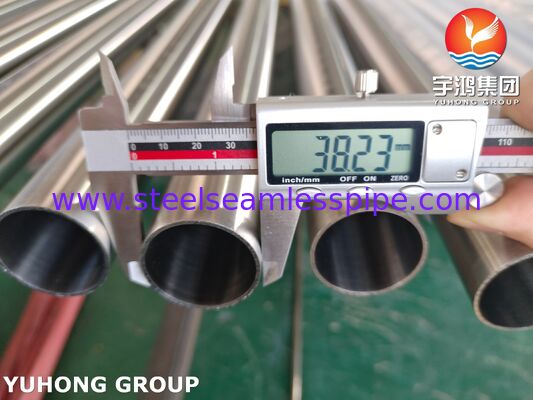

ASTM A270 TP304 Stainless Steel Seamless Sanitary Tubing for Food Indusrty
ASTM A270 is the standard specification for seamless and welded austenitic stainless steel sanitary tubing. It covers tubing used in hygienic applications (food, dairy, beverage, pharmaceutical) where cleanability and corrosion resistance are critical. There are two main finish categories:
Mechanically Polished – ID (inner diameter) is mechanically polished to a smooth, bright finish. Common Ra (roughness average) values: 20 μin (0.5 μm) or 15 μin (0.38 μm).
Electropolished – After mechanical polishing, an electrochemical process removes a thin layer, further smoothing the surface and improving corrosion resistance. Often required for ultra-hygienic or pharmaceutical applications.
Typical finishes offered:
180 grit – standard dairy finish
240 grit – smoother, easier cleaning
320 grit / electropolish – for demanding CIP/SIP systems
Equivalent Grade of ASTM A270 TP304 Stainless Steel Seamless Tube Sanitary Tubing
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
Chemical Composition of ASTM A270 TP304 Stainless Steel Seamless Tube Sanitary Tubing
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 304 | min. | – | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
Sanitary tube is designed for easy cleaning and bacteria‑free operation – the smooth inner surface and tight tolerances allow it to meet FDA and 3‑A sanitary standards.
Normal tube is made for strength, pressure, or structural use, but without the surface finish or cleanliness required for hygienic applications.
If you are supplying for the dairy industry, ASTM A270 sanitary tube with a polished ID is the correct product. Using “normal” tube (even if 304 stainless) would risk product contamination, difficult cleaning, and non‑compliance with food safety regulations.
Application
Fluid Transfer
Plumbing
Food and Beverage Industry
Chemical Processing
Manufacturing EquipmentMarine Applications
HVAC Systems
