| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | YUHONG |
| प्रमाणन: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| मॉडल संख्या: | एएसटीएम बी564 यूएनएस एन08020 मिश्र धातु 20 डब्ल्यूएनआरएफ निकला हुआ किनारा |
| न्यूनतम आदेश मात्रा: | 1पीसी |
|---|---|
| पैकेजिंग विवरण: | प्लाइवुड केस / पैलेट |
| प्रसव के समय: | 7 दिन |
| भुगतान शर्तें: | एल/सी,टी/टी |
| प्रोडक्ट का नाम: | निकल मिश्र धातु निकला हुआ किनारा | आयाम: | एएनएसआई फ्लैंगेस, एएसएमई फ्लैंगेस, बीएस फ्लैंगेस, डीआईएन फ्लैंगेस, एन फ्लैंगेस आदि। |
|---|---|---|---|
| मानक: | एएसटीएम बी 564, एएसएमई एसबी 564 | सामग्री: | UNS N08020, मिश्र धातु 20 |
| आकार: | 1/2 "से 48" | दबाव: | Class150/300/600/9001500/2500 |
| प्रकार: | अंधा निकला हुआ किनारा,पिरोया निकला हुआ किनारा,निकला हुआ किनारा पर पर्ची,सॉकेट वेल्ड निकला हुआ किनारा | निकला हुआ किनारा चेहरा: | फ्लेट फेस (एफएफ), उठाया चेहरा (आरएफ), रिंग प्रकार संयुक्त (आरटीजे) |
| आवेदन: | तेल और गैस उद्योग, रासायनिक प्रसंस्करण, समुद्री इंजीनियरिंग, आदि | ||
| प्रमुखता देना: | ASTM B564 Alloy 20 WNRF flange,ASME B16.5 weld neck flange,UNS N08020 alloy steel flange |
||

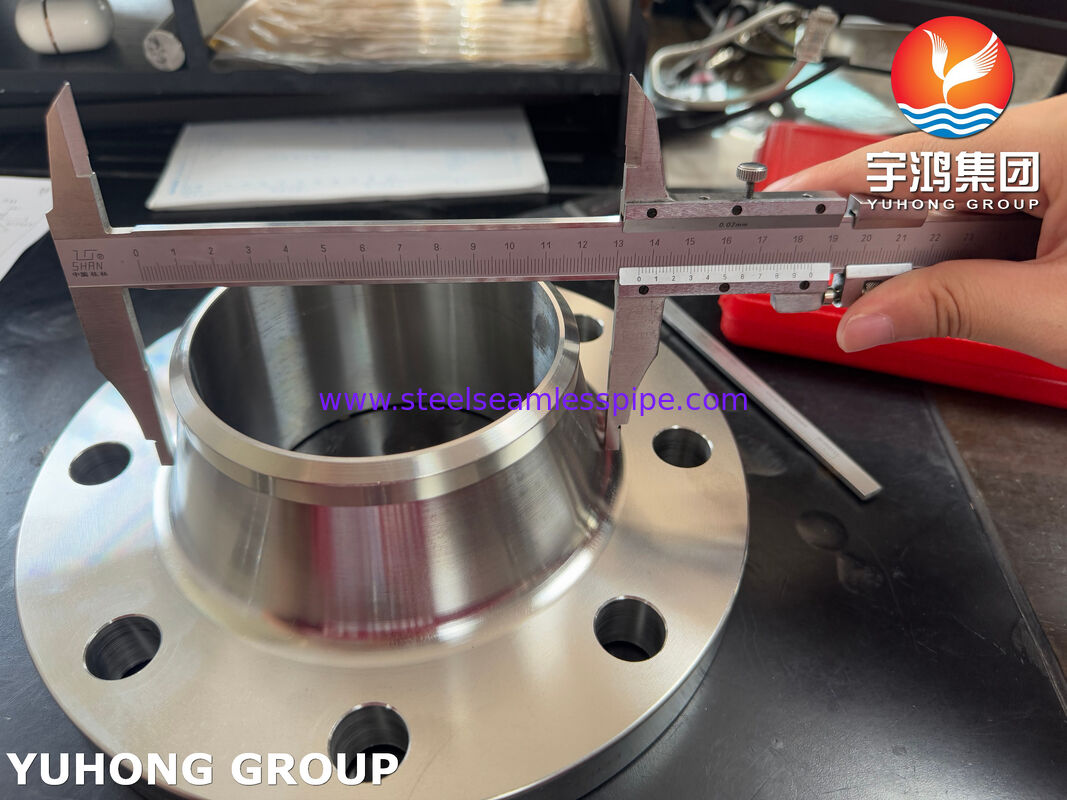

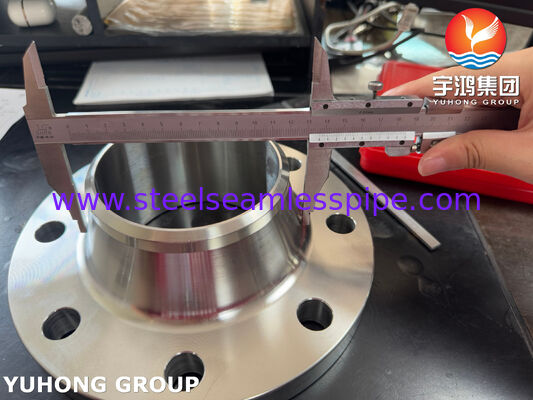

ASTM B 564 UNS N08020 / Alloy 20 WNRF Flange Nickel Alloy Weld Neck Flange
ASTM B564 UNS N08020 / Alloy 20 Weld Neck Flange is a premium, high-integrity piping component designed for the most demanding corrosive and high-pressure services. Its strength, durability, and exceptional chemical resistance make it a critical solution in industries where failure is not an option.
When to Specify Alloy 20? Specify Alloy 20 when you need:
Proven resistance to sulfuric acid and phosphoric acid.
Good general corrosion resistance where 316L is failing.
Resistance to Chloride Stress Corrosion Cracking.
A cost-effective solution that avoids the high cost of more exotic alloys like Hastelloy.
Equivalent Material of ASTM B564 UNS N08020 Flange Alloy 20 Weld Neck Flange
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Alloy 20 | N08020 | 2.4660 | Z2NCUD31-20AZ | NiCr20CuMo | - | - | - |
Chemical Composition (%) of ASTM B564 UNS N08020 Flange Alloy 20 Weld Neck Flange
| Alloy 20 | Ni | C | Mo | Mn | Si | Fe | Cu | S | P | Cr |
| 32 - 38 | 0.02 max | 2 - 3 | 1 - 2 | 0.7 max | Bal | 3 - 4 | 0.005 max | 0.02 max | 19 - 21 |
Mechanical Characteristics of ASTM B564 UNS N08020 Flange Alloy 20 Weld Neck Flange
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.1 g/cm3 | 1443 °C (2430 °F) | Psi - 35000 , MPa - 241 | Psi - 80000 , MPa - 551 | 30 % |
ASTM B564 UNS N08020 Weld Neck Flange Nickel Alloy Flange
| Specifications List |
ASTM/ ASME B564 / SB564 |
|---|---|
| Standard Flange | BS, DIN, ASME, ANSI, EN |
| Size Chart | 1/2″up to 48″ (15 - 1200NB) |
| Class / Pressure Rating | PN16, 2500#, PN25, 600#, 150#, 300#, 900#, PN10, 1500#, PN64, PN6, PN40 |
| Flange Type | Weld Neck, Blind, Slip on, Socket, Thread, Long Weld Neck ... |
| ASTM Standards | DIN, ANSI/ASME B16.48, B16.5, BS4504, BS 10, B 16.47 Series A & B, EN-1092 |
Key Features & Advantages
Superior Strength in Harsh Environments: The combination of the robust weld neck design and the high-strength Alloy 20 forging makes it capable of withstanding high pressures and temperatures in corrosive service.
Excellent Weldability: The "weld neck" is designed to be butt-welded directly to the pipe, creating a strong, reliable joint. Alloy 20 itself is readily weldable using compatible filler metals (e.g., ER320LR, ENi-6620).
Long Service Life: Its exceptional resistance to a wide range of corrosives minimizes maintenance, downtime, and replacement costs.
Smooth Flow Path: The tapered hub allows for a smooth transition from the pipe to the flange, reducing turbulence and pressure drop
Application
This flange is used in industries where standard stainless steels (304/316) fail due to corrosion.
Chemical Processing Industry (CPI): Reactors, tanks, and piping handling sulfuric acid, phosphoric acid, and other aggressive chemicals.
Pharmaceutical Industry: For processes involving high-purity and corrosive intermediates.
Food and Beverage Processing: Especially in applications with acidic ingredients and chlorinated cleaning agents.
Oil & Gas (Upstream & Midstream): Handling of sour gases (H₂S) and other corrosive wellstream components.
Pulp & Paper Industry: Digesters and bleaching equipment.
Plastic Manufacturing: Plants producing synthetic fibers and polymers.
